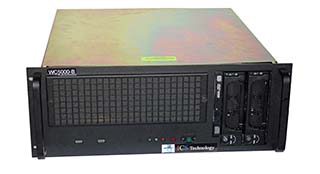

ICS Technology WC5000
Video Wall Controllers

WC 5000-B series video wall controller can be configured with the following inputs and outputs: 4K input capture and 4K output to screens.

We offer options for on-site installation tech support and training. Our wall control panel software makes our video wall controllers the easiest to use.

Outputs:

4 to 48 Native Display port outputs can be configured to DVI or HDMI with active adapters. Display port output resolution up to 3840 X 2160 per screen. DVI/ HDMI output Resolution up to 1920 X 1200 per screen.

Direct Inputs:

1 to 64 inputs of any combination, DVI / HDMI /DVI Dual Link / Display Port /VGA / HD Component / HD-SDI / SD-SDI / 3G-SDI Inputs.

Display Port capture — Resolution up to 3840 X 2160 60Hz
DVI — Resolution capture up to 1920 X 1200 60 Hz
DVI Dual Link capture— Resolution up to 3840 X 2160 30Hz
HDMI capture— (HDCP compliant) Resolution up to 1080P
HD-SDI / SD-SDI / 3G-SDI capture— Resolution up to 1080P
HD component— Resolution up to 1080P
RGB analog capture — Resolution up to 2048 X 1536
8 to 128 Composite Video / S-Video Input capture— Resolution NTSC, Pal and S-Video

Network Inputs:

Video over IP cameras /workstation desktops are captured directly on the WC5000 unit using a network /decoder capture card with gigabit network input. You can capture and decode up to eight 1080P H264 inputs on each card. These inputs are fully scalable and can be placed anywhere on the video wall. This IP capture card can also capture workstation desktops over IP with the use of the ICS H264 encoder. This unit will encode desktop display into H264 and stream it over the network with an IP address that can be captured and decoded by the ICS video wall controllers. For additional information contact your ICS salesperson.

We support control devices: Crestron, AMX and all other third-party control units that can transmit a script code over RS-232 or Telnet.

The WC2500 video wall controller can do all the same as above but with a limited number of inputs and outputs.

See information on our new WC2500 video wall controller
