Video / Data Walls - Download a PDF of Video & Data Walls

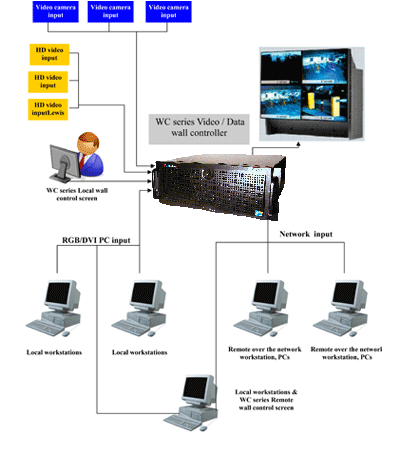

In video/data wall applications, the WC 3100 & WC 4000 Controllers creates a large desktop that is used to display a variety of inputs application programs, live video windows and screens from local or remote workstations.

A separate computer can be used to configure the display wall using WC series Remote Control Center Software, and to control application-specific hardware, if needed.
Video is displayed directly on individual screens through the use of video capture boards in the WC series Controller.

Analog data - including VGA/RGB signals - is captured using RGB capture hardware.

Data walls are primarily used in mission critical command and control rooms and public information display applications.
Video Walls

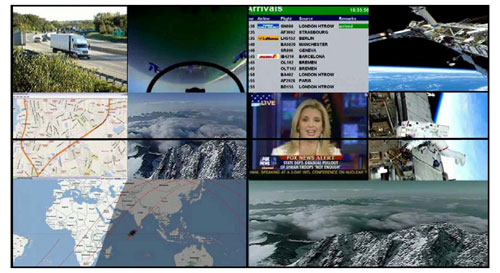

In video wall applications, the WC series controller is used to display a variety of Multimedia content. Multiple simultaneous videos and images are displayed on the wall with manual or automatic real-time positioning, scaling and dragging of display Windows configured in scenarios.

Video Walls are primarily used in advertising, entertainment and public information display applications.
Digital Signage Networks
These are display walls installed in regional chains of retail stores, banks, commercial or government offices with centralized content creation, distribution and scheduling over a wide area network connection.

These systems integrate the display walls with scheduling and billing tools to deliver targeted interactive messages to audience at distributed locations. Remote and central management of multiple controllers is essential for these types of systems.
Wall Control Panels
Configurations can be stored as presets and recalled using "ICS control panel"
software optional touch screen PC. Touch screens using AMX & Crestron
systems are also supported.
specifications
INPUT
Number VGA/DVI RGB - added in pairs up to 32 maximum
Video added 16 at a time up to 128 maximum
HD component added 4 at a time up to 16 maximum
Types

Composite, S-Video, NTSC, PAL, RGB, VGA,DVI, HD component, Web Streaming,
Flash Animation, Slide Presentation

Capture Format 640X480 NTSC, 768X575 PAL, Up to 1600 X 1200 DVI 1920 X 1080 RGB
1080i HD component
Display Stretching, positioning and dragging of any window, Picture-in-Picture,
Video-in-Video
OUTPUT
Number Minimum 4 Channels, Up to 40 Channels
Resolution RGB

Up to 2048 X 1536 each

Resolution DVI Up to 1600 X 1200 each
Color 16, or 32 bits
Scan Rate

Up to 90 HZ

Connector RGB HD15 or DVI
Overlays Multiple Video Overlays
SOFTWARE
OS Windows XP Pro
Configuration
& Control

WC 3000 Wall Control

Configuration Preset Selection WC series Control Panel
PERIPHERALS
Network 10/100 Base-T Ethernet, Dual-Optional
Media

DVD, CD-ROM

Storage HD, Network Drives-Optional
CUSTOMIZATION
Redundancy Guarantee up time for mission critical installations
Scalability

Cascaded Controllers

Click to view PDF


Configuration of installed display walls in regional chains of retail stores, banks, commercial or government offices with centralized content creation, distribution and scheduling over a wide area network connection.
